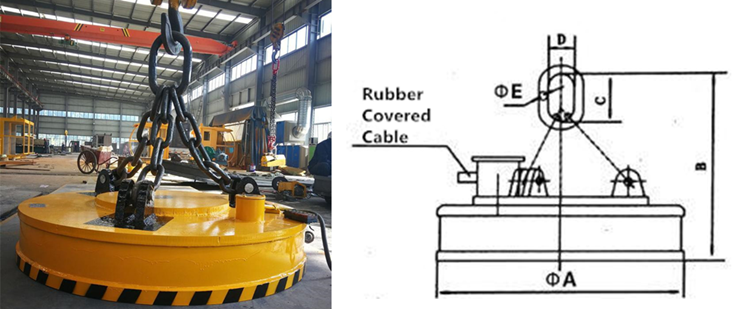

Type 類型 | Electric Current 電流 (A) | Weight 自重 (kg) | Overall dimension 外形尺寸 (mm) | ||||
A | B | C | D | E | |||
MW5-70L/1 | 15 | 490 | 700 | 800 | 160 | 90 | 30 |
MW5-80L/1 | 18 | 620 | 800 | 800 | 160 | 90 | 30 |
MW5-90L/1 | 26.6 | 800 | 900 | 1090 | 200 | 125 | 40 |
MW5-110L/1 | 35 | 1350 | 1100 | 1140 | 220 | 150 | 45 |
MW5-120L/1 | 45.5 | 1700 | 1200 | 1180 | 220 | 150 | 45 |
MW5-130L/1 | 54 | 2060 | 1300 | 1240 | 250 | 175 | 50 |
MW5-150L/1 | 71.2 | 2830 | 1500 | 1250 | 350 | 210 | 60 |
MW5-165L/1 | 75 | 3200 | 1650 | 1590 | 370 | 230 | 75 |
MW5-180L/1 | 102 | 4230 | 1800 | 1490 | 370 | 230 | 75 |
MW5-210L/1 | 129 | 7000 | 2100 | 1860 | 400 | 250 | 80 |
MW5-240L/1 | 154 | 9000 | 2400 | 2020 | 450 | 280 | 90 |
