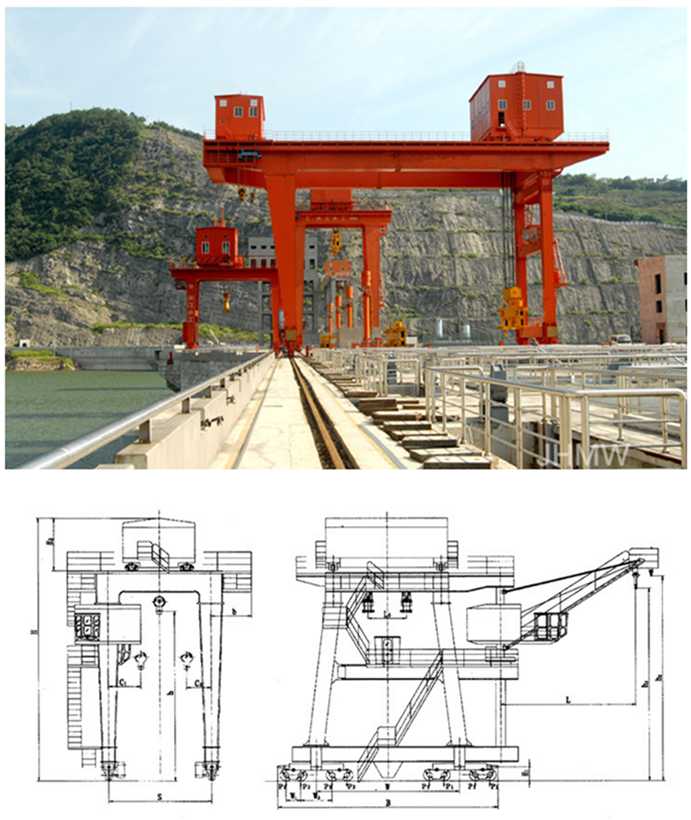

水電站門機 - 產品選型
水電站門機 - 型號參數(shù)
Lifting Weight 載荷 (t) | 100 | 125 | 200 | 250 | 320 | 350 | 400 | 450 | |
Group Classification 工作級別 | A7，A8 | ||||||||
Span 跨度 (m) | 16 | 13 | 12 | 8.5 | 14 | 12 | 12 | 8 | |
Lifting Range 起重范圍 (m) | Main Lifting Mechanism 主起升機構 | 20 | 90 | 50 | 70 | 69 | 80 | 90.5 | 65 |
Working Speed 運行速度 (m/min) | Main Lifting Mechanism 主起升機構 | 2.8 | 2.16 | 2.06 | 2.2 | 2.5 | 2.2 | 2.22 | 2.2 |
Main Dimensions 主要尺寸 (mm) | H | 29300 | 30142 | 29395 | 25530 | 30500 | 31258 | 30452 | 30599 |
B | 1600 | 15937 | 14300 | 14300 | 14381 | 18085 | 13800 | 12800 | |
b | 2500 | 2500 | 2800 | 2500 | 3000 | 3750 | 1386 | 2400 | |
W | 9000 | 9000 | 8500 | 9200 | 9000 | 9200 | 9600 | 8500 | |
w1 | 960 | 960 | 960 | 960 | 960 | 1100 | 1100 | 1100 | |
w2 | 1100 | 1100 | 1100 | 1100 | 1100 | 1800 | 1800 | 1800 | |
H1 | 1200 | 800 | 815 | 815 | 880 | 3356 | |||
H2 | 13172 | 13172 | 10055 | 7680 | 11330 | 13758 | 18800 | 13428 | |
h | 15000 | 15000 | 18000 | 15370 | 15500 | 2300 | 16500 | 15000 | |
h1 | 13000 | 13000 | 22000 | 16000 | 12500 | 15000 | 16500 | 12000 | |
L | 13000 | 13000 | 12000 | 9000 | 9000 | 7550 | 6000 | 10000 | |
Max. Wheel Load 最大輪載 (KN) | P1 | 550 | 6O2 | 550 | 480 | 740 | 865 | 975 | 910 |
P2 | 485 | 500 | 480 | 480 | 620 | 645 | 805 | 910 | |
Total Motor Power 總功率 (KW) | 104.5 | 104.5 | 241 | 270 | 271 | 329.5 | 364 | 376.5 | |
Power Supply 電源供應 | 3-Phase AC 380v 50Hz | ||||||||
